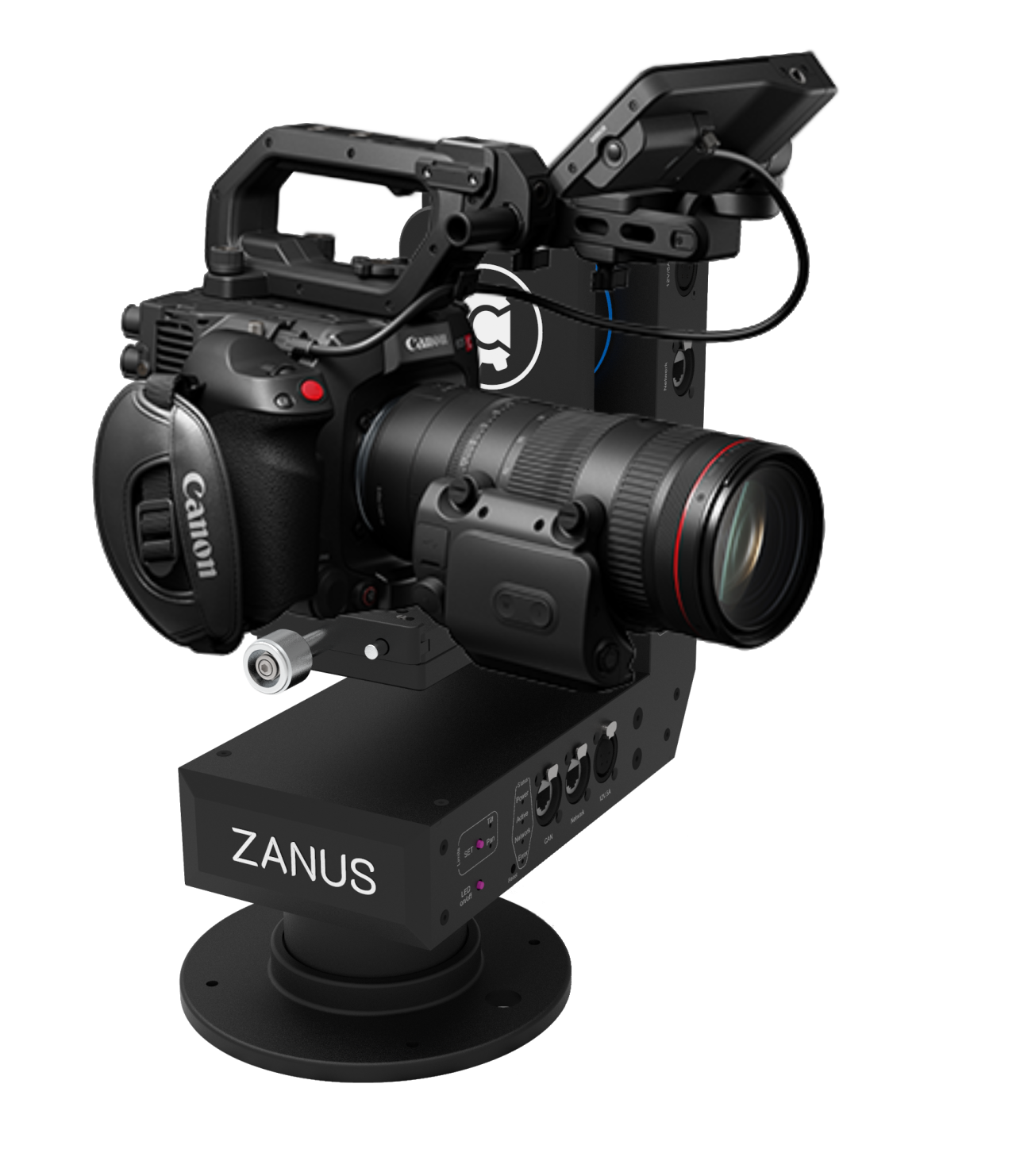

PAULI SMART PAN TILT HEAD
Light and compact head filling the gap between the Pauli and Paulinho models. It has a payload of 10kg and weighs just 5.5kg. Contains Ethernet switch inside the head and power supply for the camera. Can make multiple turns in pan axis.
Pauli Smart pan tilt head key features
1. Wide speed range – Tight speed control for both pan and tilt in the range from 0.001°/s (4 days for a full rotation) up to 180°/s (2 seconds for a full rotation)
2. Advanced control – Control app implemented on the pan tilt head (control from any computer, smart phone or tablet without the need for additional installation), Joystick control (any joystick with VISCA over IP protocol, configurable Skaarhoj joystick and more) and production automation software
3. Compact and light – 10 kg payload with only 5.5 kg of weight
4. Possibility to have multiple turns in pan axis
5. Can be used for AR/VR productions with freeD protocol
Specifications
Camera payload | 10kg |
Weight | 5.5kg |
Pan angle | ± 360° (multi turn) |
Tilt angle | ± 180° |
Pan/Tilt speed | 0.001 - 180°/s |
Acceleration | 90°/s² |
Power requirements | 12V DC, 5A |
Dimensions | 326 x 280 x 84mm |
Control

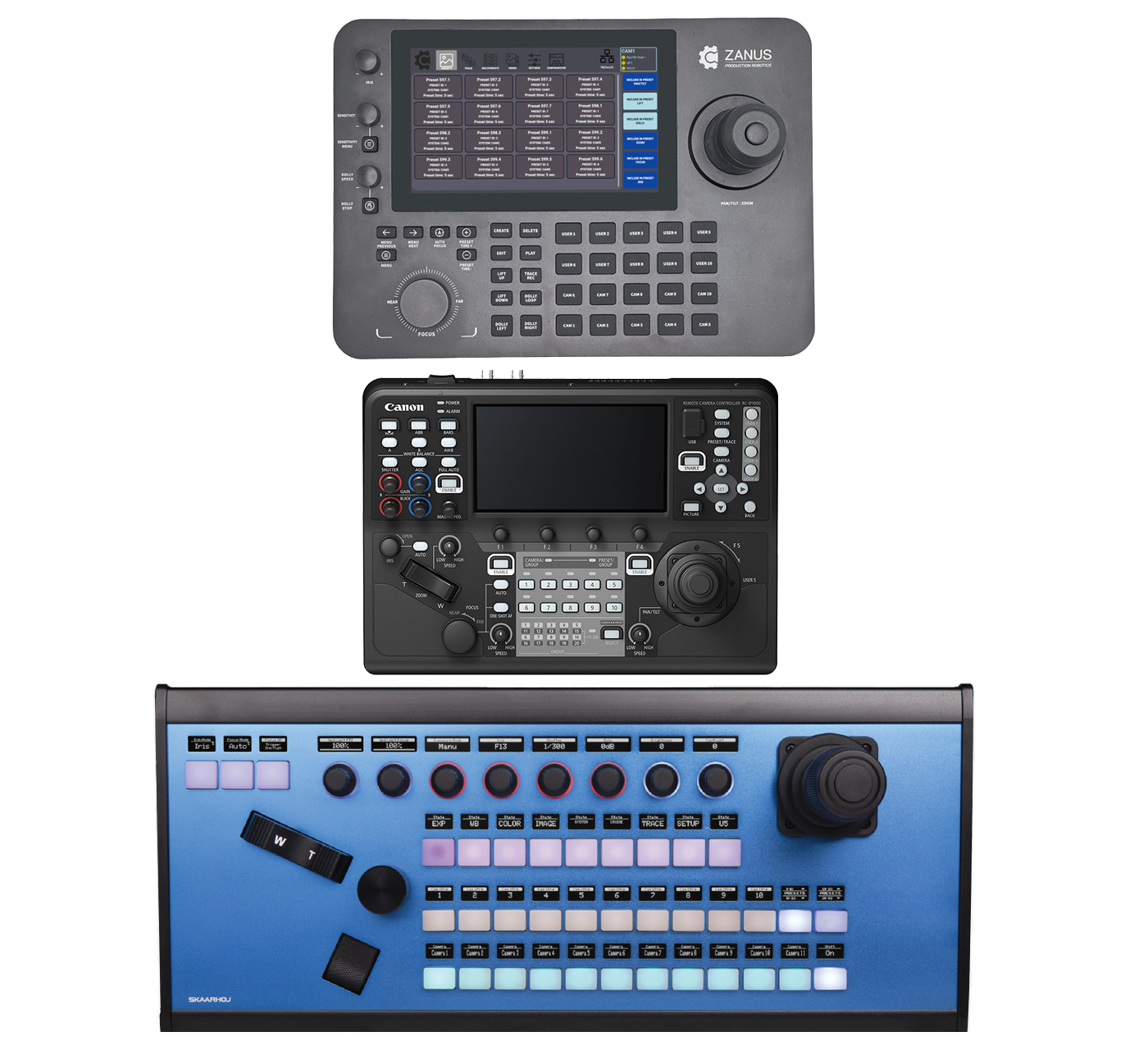

Control app that is implemented on the robotic pan tilt head can be opened from any computer, tablet, smartphone, or similar device without the need to install additional software. Users have the option of joystick control with Zanus RoboStick joystick or a great variety of other controllers (like any Canon joystick, any joystick with VISCA over IP or Skaarhoj configurable joystick).
Interface

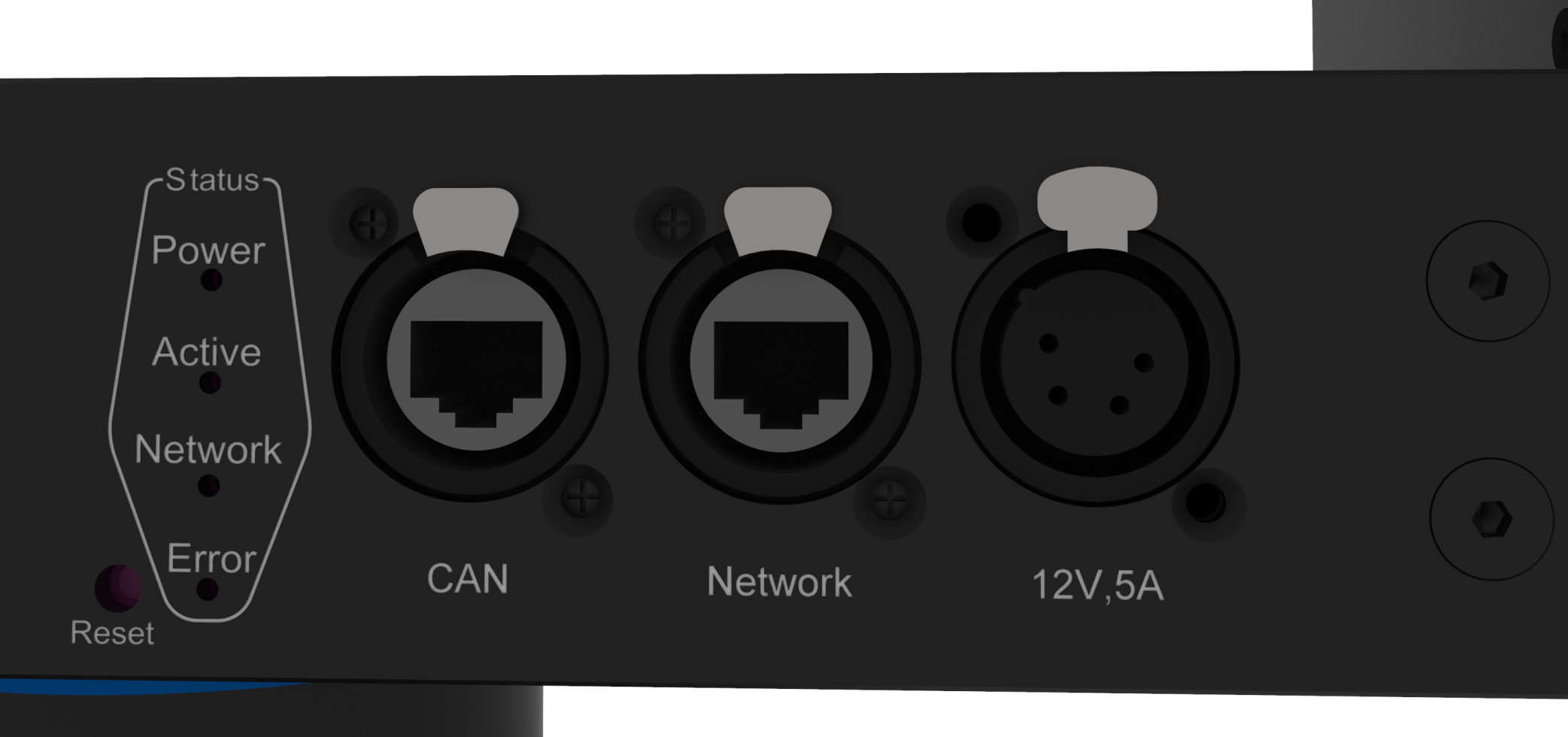

All connectors are with the locking mechanism. Through input connectors for the Ethernet, Power and CAN the head can be controlled, supplied and easily interfaced with other Zanus production robotics.

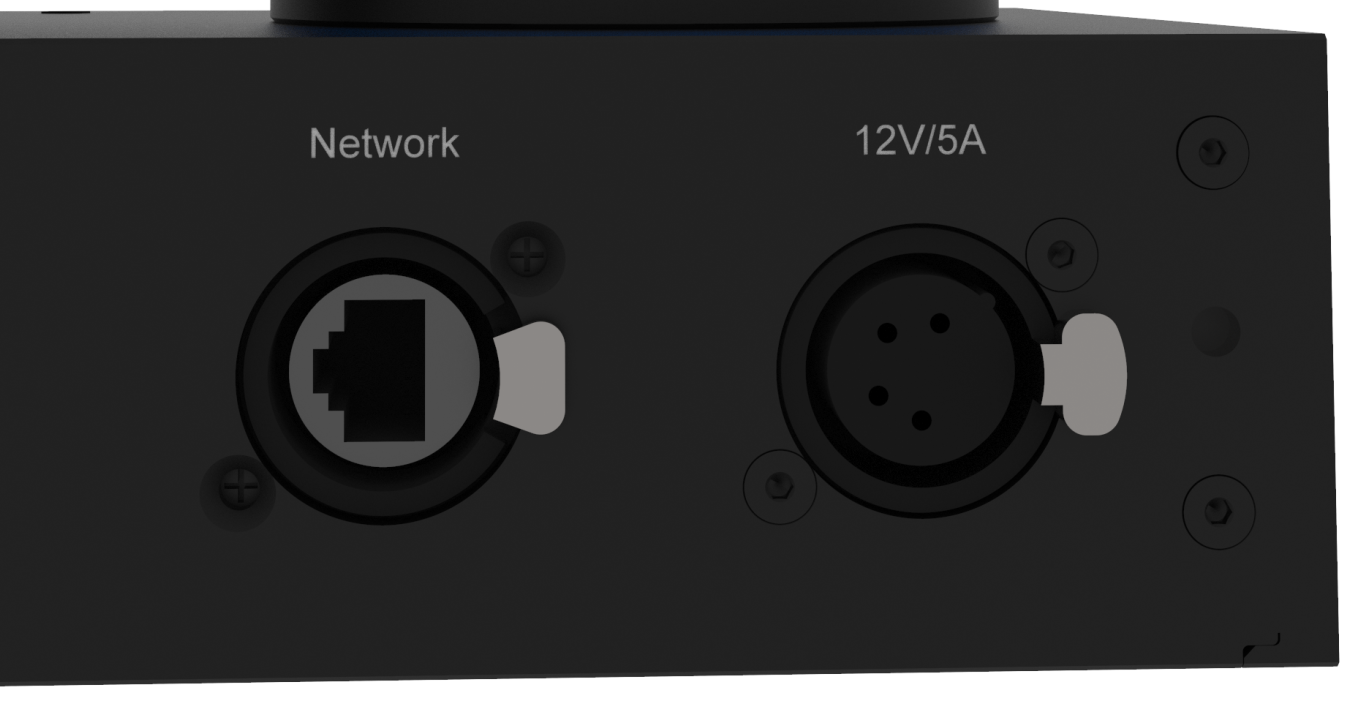

Output connectors allow for the 12V power supply of the camera and Ethernet interface.
Application
Pauli Smart pan tilt head is suitable for many types of surroundings and it has already found use in sports events, small and large studios, churches, parliaments, etc.
